FSTH-FG310D
MODEL NO.：FSTH-FG310D

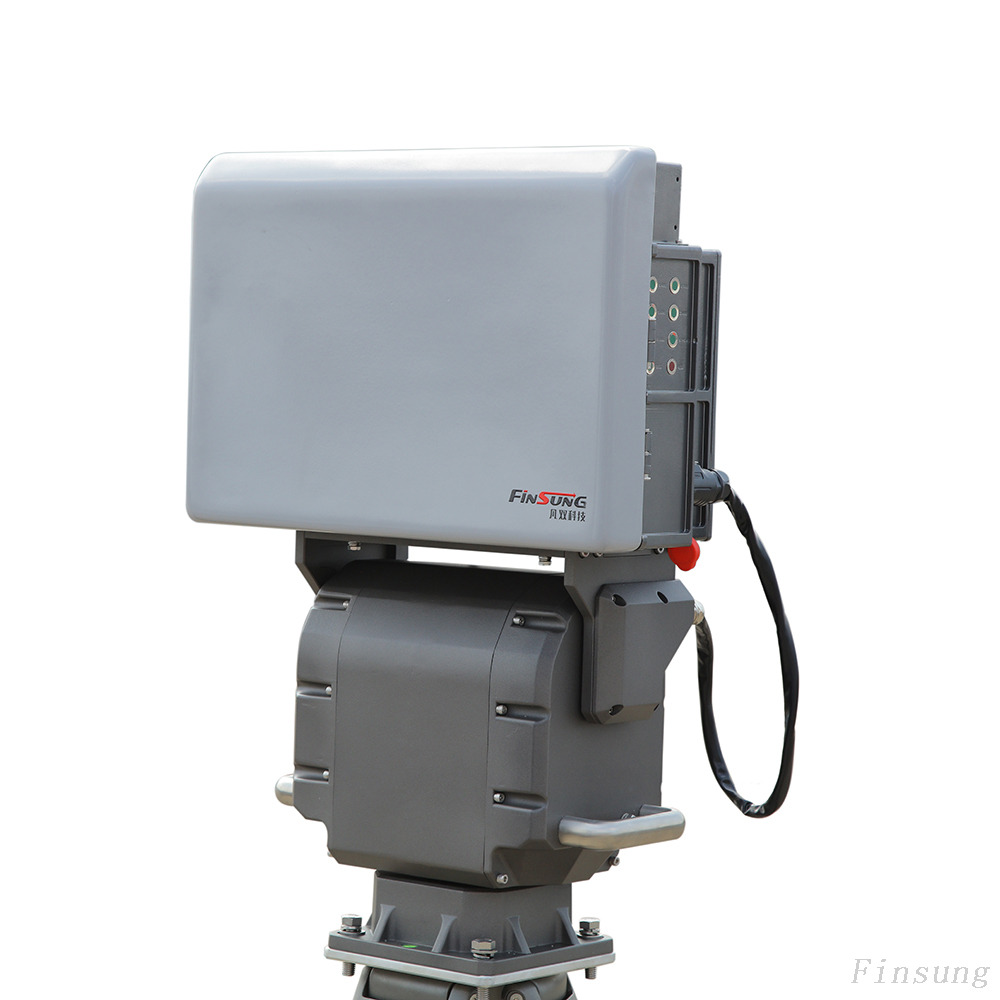

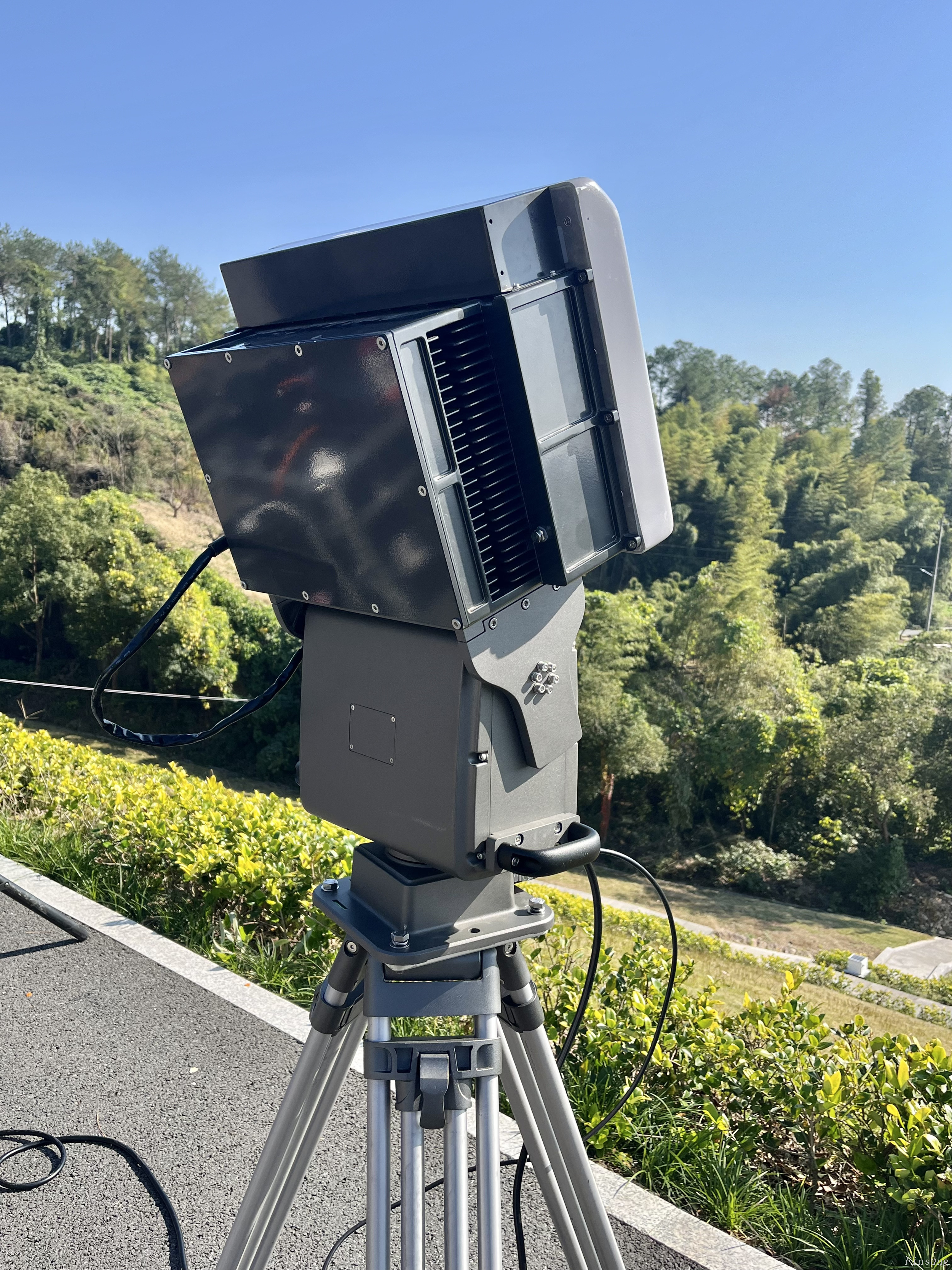

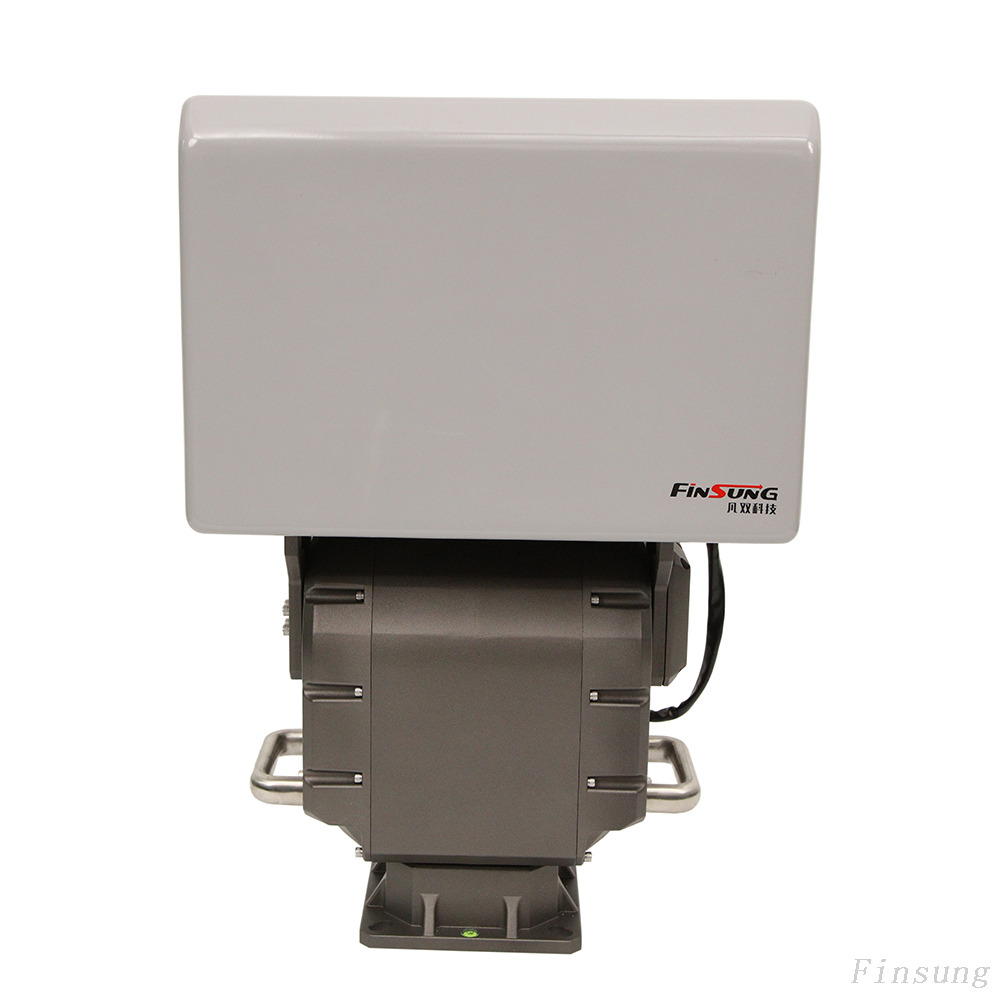

Directional Suppression Equipment with Gimbal
The directional emission of high - power jamming signals by radio - wave suppressing devices enables interference with target drones, thereby creating an electronic barrier. This action disrupts the connection between the drone and its controller, and causes the drone to lose satellite positioning data and control. Depending on the preset parameters of the drone, it will be compelled to return, make a forced landing, or hover. Equipped with a gimbal, the device can provide 360° protection. It has extensive applications across various sectors such as the military, courts, airports, embassies, borders, petrochemical facilities, and power plants, and can also be utilized in commercial events like sports competitions, concerts, and exhibitions.
Key Features:
1.Forced Landing and Return Mode: The device efficiently disrupts the navigation, control, and video transmission signals of standard consumer drones and customized UAVs, enabling smooth transitions between forced descent and return-to-origin modes.
2.Long-Range Counteraction: It employs high-gain directional antennas to achieve longer-range counteraction capabilities.
3.Multi-Frequency Interference: The system can either independently or concurrently emit countermeasure signals across multiple frequency bands, targeting a broad spectrum of UAV communication signals.
4.Clear Indication: Each frequency band features dedicated status indicator lights, offering real-time visibility into the operational status of the modules.
5.Rich Functionality: The device supports remote operation and includes a self-protection feature to mitigate potential adverse impacts on the surrounding electromagnetic environment during prolonged use.
6.Unmanned Mode: When integrated with radio detection systems in unmanned mode, it can autonomously counteract unauthorized UAVs within its operational range, eliminating the need for manual intervention.
Main Technical Specifications:
1. Operating Frequency Bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz.1.5GHz,2.4GHz,5.1GHz,5.4GHz,5.8GHz
2. Interference Modes: Disengage mode and forced landing mode.
3. Interference Range: >3km (may vary depending on the environment and UAV model).
4.Interference Response Time: <5s.
5.Gimbal Rotation Angle: Horizontal 360° Vertical 0 - 60°
6.Gimbal Rotation Speed: Horizontal 0.02° to 20s, Pitch 0.02° to 10°/s.
7.Communication Interface: RJ45/RS485.
8.Total Power Consumption: <1000W.
9. Heat dissipation: Natural cooling + fan.
10.Operating Temperature: -40C to +60C.
11.Weight:<30kg..
12. Protection Level: IP66.
13.Power Supply: AC220V+44V.
14. Continuous Operating Time: Supports outdoor 7x24-hour use.
