FSTH-FG310D

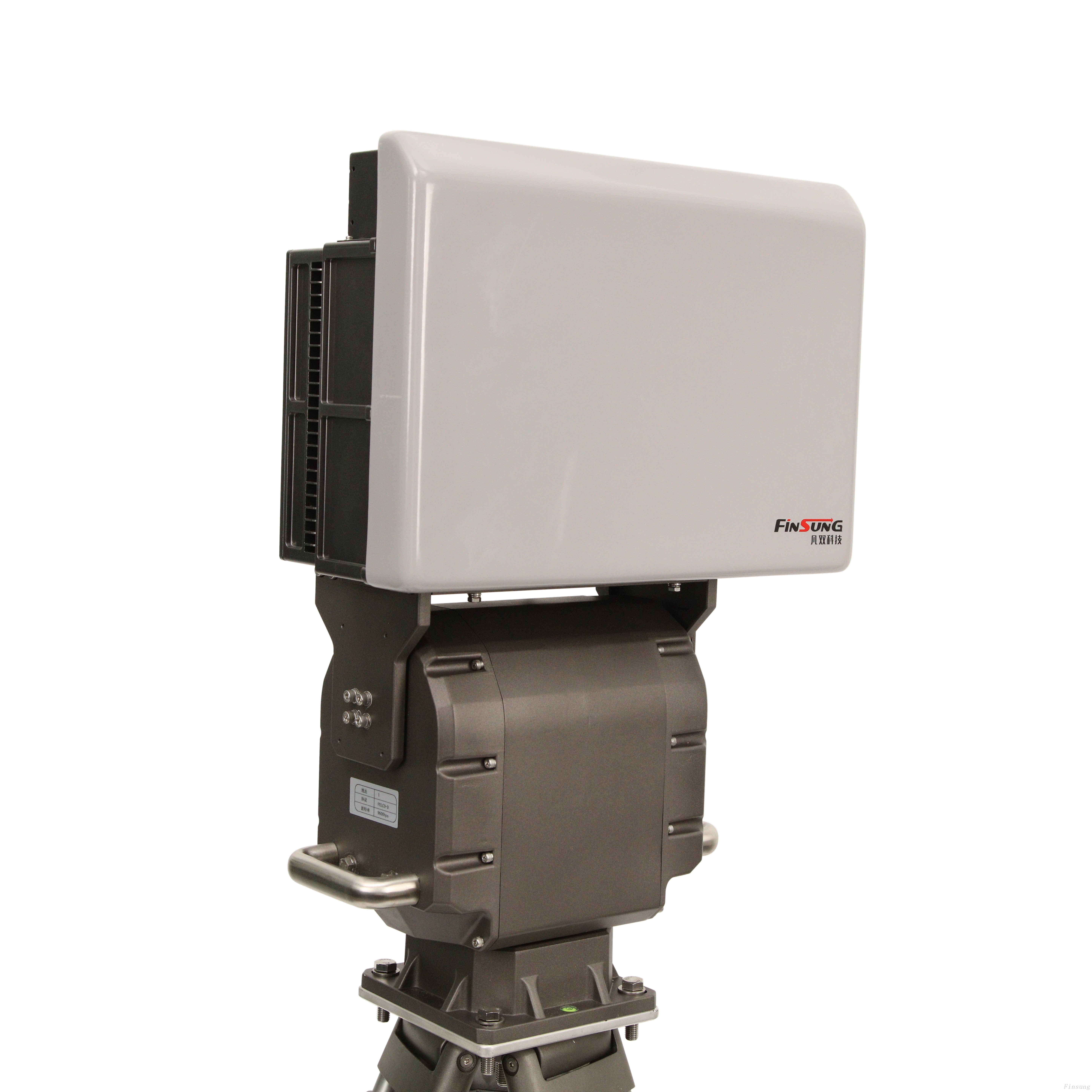

This advanced electronic countermeasure apparatus employs targeted high-intensity jamming signals to establish a protective perimeter, disrupting critical communication links between unmanned aerial vehicles (UAVs) and their operators. By severing satellite positioning data and control channels, the system enforces predetermined responses based on drone configurations—initiating return-to-source protocols, controlled descent, or stabilized hovering. Featuring a 360° motorized gimbal mechanism, the solution delivers omnidirectional protection across diverse operational environments.
Applications
Deployed extensively in:
Military installations and border security systems
Judicial complexes and diplomatic compounds
Aviation facilities and critical infrastructure (petrochemical plants, power grids)
Large-scale public events (athletic competitions, musical performances, expositions)
Core Capabilities
Adaptive Neutralization Modes: Disrupts navigation, control, and video transmission signals across commercial and customized UAV platforms, with flexible mode selection between forced landing and return-to-origin protocols.
Extended Engagement Range: Incorporates high-efficiency directional antenna arrays for enhanced operational coverage.
Broad-Spectrum Jamming: Generates simultaneous or selective interference across multiple RF bands, ensuring comprehensive signal suppression.
Operational Feedback System: Individual frequency modules feature dedicated status indicators for real-time performance monitoring.
Advanced Functionality Suite: Supports remote management with electromagnetic field optimization to minimize environmental impact during prolonged operations.
Autonomous Defense Integration: When synchronized with radio detection systems, enables automated identification and neutralization of unauthorized UAVs without human intervention.
Technical Specifications
Frequency Coverage: 400MHz, 800MHz, 900MHz, 1.2-1.5GHz, 2.4GHz, 5.1/5.4/5.8GHz
Countermeasure Modes: Signal disengagement & forced landing
Effective Radius: >3km (environment/device dependent)
Activation Latency: <5 seconds
Gimbal Performance:
Azimuth: 360° continuous rotation
Elevation: 0-60° adjustment
Rotation Rates: 0.02-20°/s (horizontal), 0.02-10°/s (vertical)
Interface Standards: RJ45/RS485 connectivity
Power Requirements: <1000W total load (AC220V + 44V input)
Thermal Management: Passive convection + auxiliary fan cooling
Environmental Ratings:
Operational Range: -40°C to +60°C
Ingress Protection: IP66 certified
Physical Characteristics:
Mass: <30kg
Duty Cycle: 24/7 continuous outdoor operation
