FSTH-PL671R

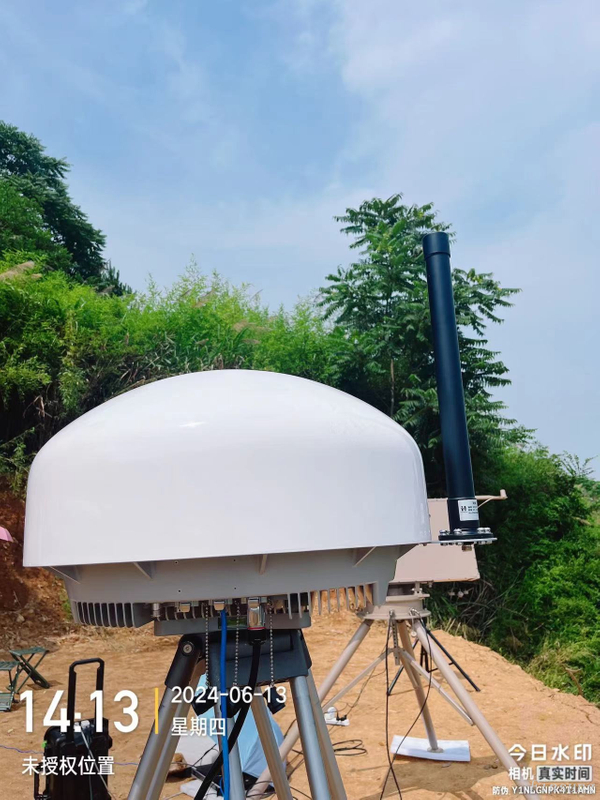

This drone radio monitoring device has excellent signal detection capability, can detect and locate drone radio signals in the full frequency range of 300MHz to 6000MHz, and realize a 6km radius of full-area monitoring coverage. Once the device is activated, it enters the intelligent monitoring mode and triggers the sound and light alarm system as soon as the drone signal is captured. Relying on the low altitude safety control platform system, the device can automatically link radio jamming equipment based on the real-time detected signal frequency and location information to suppress signals in the target area, forcing the drone to perform return or forced landing operations, building a reliable line of defense for low altitude safety.
Core Advantages：
Passive detection technology adopts advanced passive signal receiving mechanism, which can realize the monitoring of UAVs without actively transmitting electromagnetic signals, ensuring that the equipment maintains a high degree of concealment in complex tactical environments, and avoiding counter-suppression by enemy signals.
Intelligent black and white list management supports customized UAV white list function, which can accurately distinguish between authorized and unauthorized UAVs, effectively identifying potential security threats while guaranteeing compliant flights and enhancing the practicality and flexibility of the monitoring system.
High-precision target identification Equipped with advanced signal processing algorithms, it can accurately locate and identify drones in the monitoring area. By analyzing the flight trajectory of the drone, the location of the operator can be further traced, providing key information for the rapid handling of security incidents.
Built-in rich UAV model database covering 200+ models of multi-rotor, fixed-wing, FPV traverser and mainstream brands (e.g. DJI, Parrot, etc.), including DIY modification drones, and supports continuous dynamic updating, which ensures that the monitoring capability of emerging models can be expanded without any upper limit.
Main Parameter ：
Detection distance: ≥5 kilometers (CE compliant, EIRP 20dBm), performance is comparable to DJI Phantom 4 Pro V2.0 transmitter power level.
Direction measurement accuracy: ≤3°
Frequency coverage: 300MHz-6GHz (full-band continuous monitoring)
Detection sensitivity: ≤ -115dBm
Dynamic range: 75dB
False alarm rate: close to zero false alarm
Support protocol: TCP/IP
Modulation mode: FM/AM/FSK/BPSK/OFDM
Multi-target recognition capability: single device simultaneously recognizes ≥ 40 drones
Detection response time: ≤ 1 second
Positioning system: support BeiDou (BDS)/GPS dual-mode positioning
UAV database: contains 30+ brands and 200+ models, supports online real-time update.
Enemy identification function: supports friendly/enemy differentiation of drones of the same model (applicable to specific DJI models).
Operating Temperature: -46℃~+70℃.
Protection level: IP66 (dustproof and waterproof, adapting to harsh outdoor environments)
Application Scenarios
Applicable to airports, military restricted areas, large event venues, nuclear power plants and other scenes with strict requirements for low-altitude security, can effectively prevent illegal intrusion of drones, clandestine filming and stealing of secrets and other risks, and provide all-weather, all-frequency security for critical areas.
Product Value
High reliability: Industrial-grade design standards, wide temperature range and IP66 protection level ensure stable operation in complex environments.
Leading technology: Passive detection and intelligent algorithms combine to realize low false alarm rate and fast response, taking into account both security and user experience.
Flexible Expansion: Open protocol interfaces and dynamically updated drone database support seamless integration with existing security systems and adapt to future technological upgrades.
