FSTH-FD391D

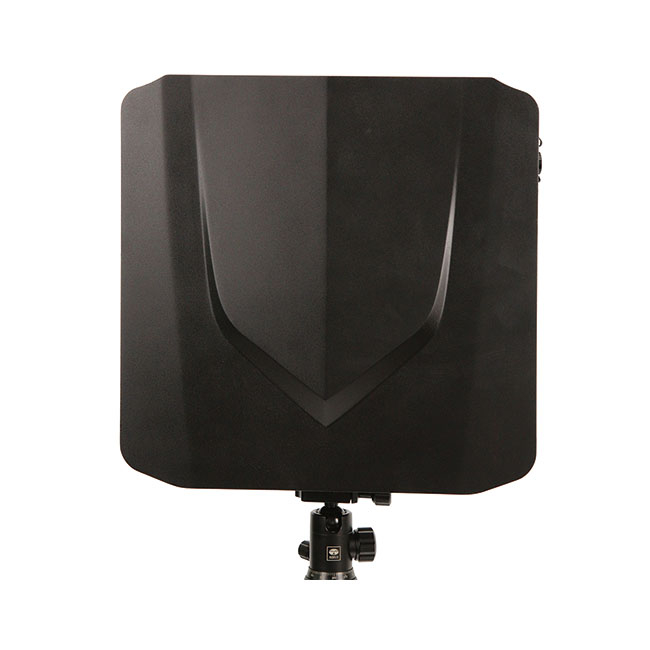

Portable UAV anti shield，mainly aimed at enforcing control the flying UAV and flying aircraft, shutting down the connection between the UAV and remote controller from a long distance. The equipment can interfere all signals from GNSS satellite (including GPS/ BDS/GLONASS/ GALILEO), It also has the capability to interfere and block commonly used UAV frequencies bands, thereby causing the interruption of UAV's remote control, video transmission, and positioning signals, resulting in forced landing, return to home, or hovering effects. Guarantee the safety of low altitude area. The equipment has a full interference of frequency ranges, suitable for multiple applicable scenarios, has long suppress distance, support external power supply. It can be used by hand-held or installed on tripod, with special suitcase to carry.
Key features:
1.Multiple frequency suppression: The equipment can interfere and control the remote control, video transmission, and positioning signals of multiple series drones
2.Portable and convenient: Small, light, simple and fast deployed, and can be operated by a single person
3.Long-distance suppression: Effectively suppress the UAVs in the defense area
4.Super-long standby: Built-in high capacity lithium battery. Battery can be easily replaced directly .
Main parameter ：
1.Working frequency: 800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.1GHz, 5.4GHz, 5.8GHz
2.Interference distance: ≥3km（according to the working environment and different series of UAVs）
3.Intercept response time: ≤3s 4.Power supply: With lithium battery，battery can be replaced directly
5.Can upgrade interfaces both by local or remote control
6.External power supply: 220V AC with power adapter
7.Screen interaction: with touchscreen
8.Battery alarm: with battery power detection function
9.Location: GPS/BDS
10.Size: 350mm*345mm*176mm
11.Weight: ≤8.5kg
12.Usage: Hand-held or install on tripod
13.Heat dissipation: With fans
14.Antenna: Built-in antenna
15.Working humidity: ≤95%
16.Working temperature: -40℃--+60℃
17.Storage temperature: -40℃--+75℃
18.Power supply: AC 220V
