FSTH-DS679D

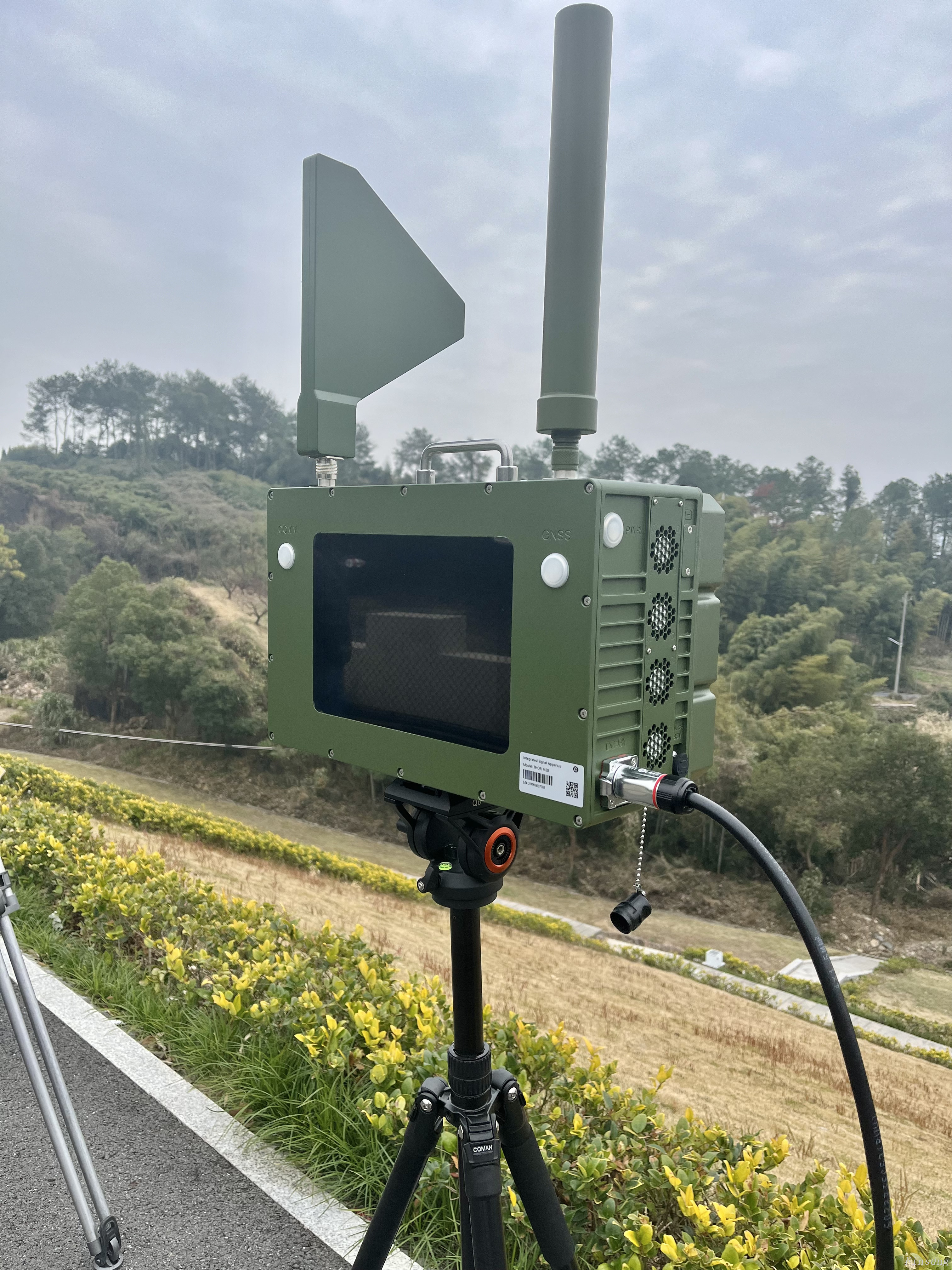

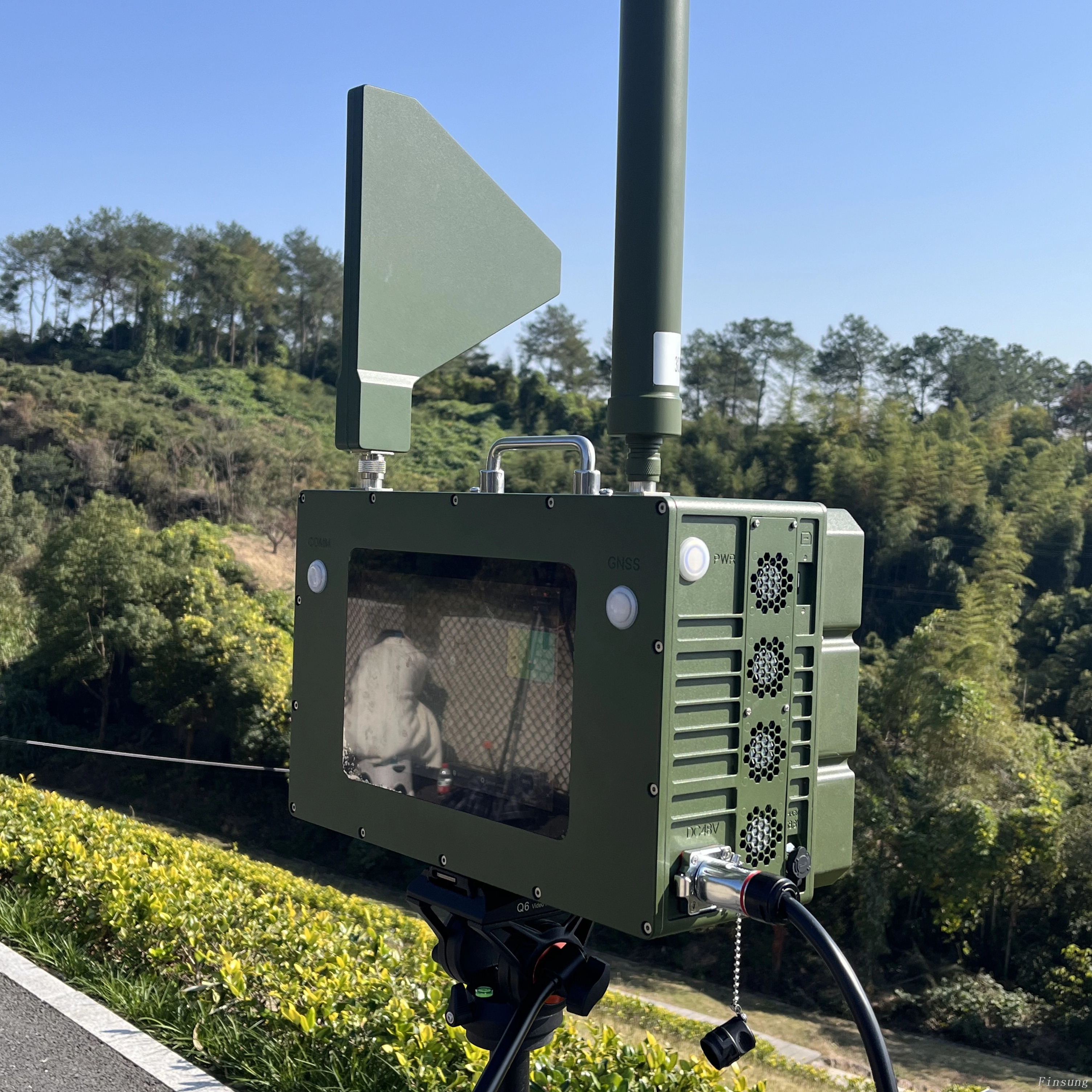

FSTH-DS679D Tactical Drone Neutralization Platform
This integrated portable system combines detection, tracking, geolocation, counter-drone measures, and network integration into a single tactical unit, delivering full-spectrum UAV threat management. Engineered for mobile deployment with ruggedized construction and extended battery performance, the lightweight design enables rapid handheld operation or fixed-position mounting across diverse security scenarios.
Operational Workflow
The system identifies unauthorized UAV activity through RF spectrum analysis and protocol decoding, intercepting and classifying control signals/video transmissions between drones and operators. Utilizing adaptive electromagnetic suppression, it disrupts UAV command links, data streams, and GNSS navigation, enforcing return-to-source protocols, emergency grounding, or flight suspension.
Deployment Flexibility
Autonomous/Networked Operation: Functions independently or as part of integrated defense networks
Multi-Role Configuration: Hand-carried tactical use or stabilized mount installation
Cloud Integration: Centralized command via cloud-based management platforms
Key Capabilities
Non-Intrusive Monitoring: Passive signal reception without electromagnetic emissions
Advanced Threat Profiling: Identifies UAV make, serial ID, 3D coordinates, velocity, flight path, and operator position
Smart List Management: Instant whitelist/blacklist tagging with automated alarm filtering
Broad Threat Coverage: Detects commercial drones, WiFi-controlled units, and custom-modified UAVs
Precision Geolocation: Pinpoints UAV and controller positions via multi-sensor fusion
Adaptive Countermeasures: Multi-band RF suppression with configurable neutralization modes
Technical Specifications
Detection Modes: Omnidirectional scan & directional bearing
Detection Spectrum: 433/800/900MHz, 1.4/2.4/5.2/5.8GHz
Bearing Accuracy: ≤50° deviation
Max Detection Range: ≥3,000 meters (open terrain)
Countermeasure Spectrum: 433/800/900MHz, 1.2/1.4/1.6/2.4/5.2/5.8GHz
Effective Countermeasure Range: ≥3,000 meters (clear line-of-sight)
Suppression Ratio: ≥20:1 (MAVIC 2 reference)
Power Management:
Detection standby: ≥4 hours
Continuous countermeasures: ≥30 minutes
Energy Options: Integrated Li-ion power cell / external DC input
Environmental Rating:
Operational: -20℃ to +55℃
Protection: IP65 ingress resistance
Physical Profile:
Shield-form chassis design
Dimensions: Comparable to tactical shield
Mass: 8kg (handling-optimized)
Network Integration: Compatible with centralized UAV defense architectures
Control Interface: 10.1" multi-touch command display
Peak Power Draw: 500W
Tactical Applications
Law enforcement tactical deployments
Counter-terror operations & narcotics interdiction
Critical infrastructure protection
Border surveillance & checkpoint security
Event safeguarding (stadiums, concerts, political summits)
