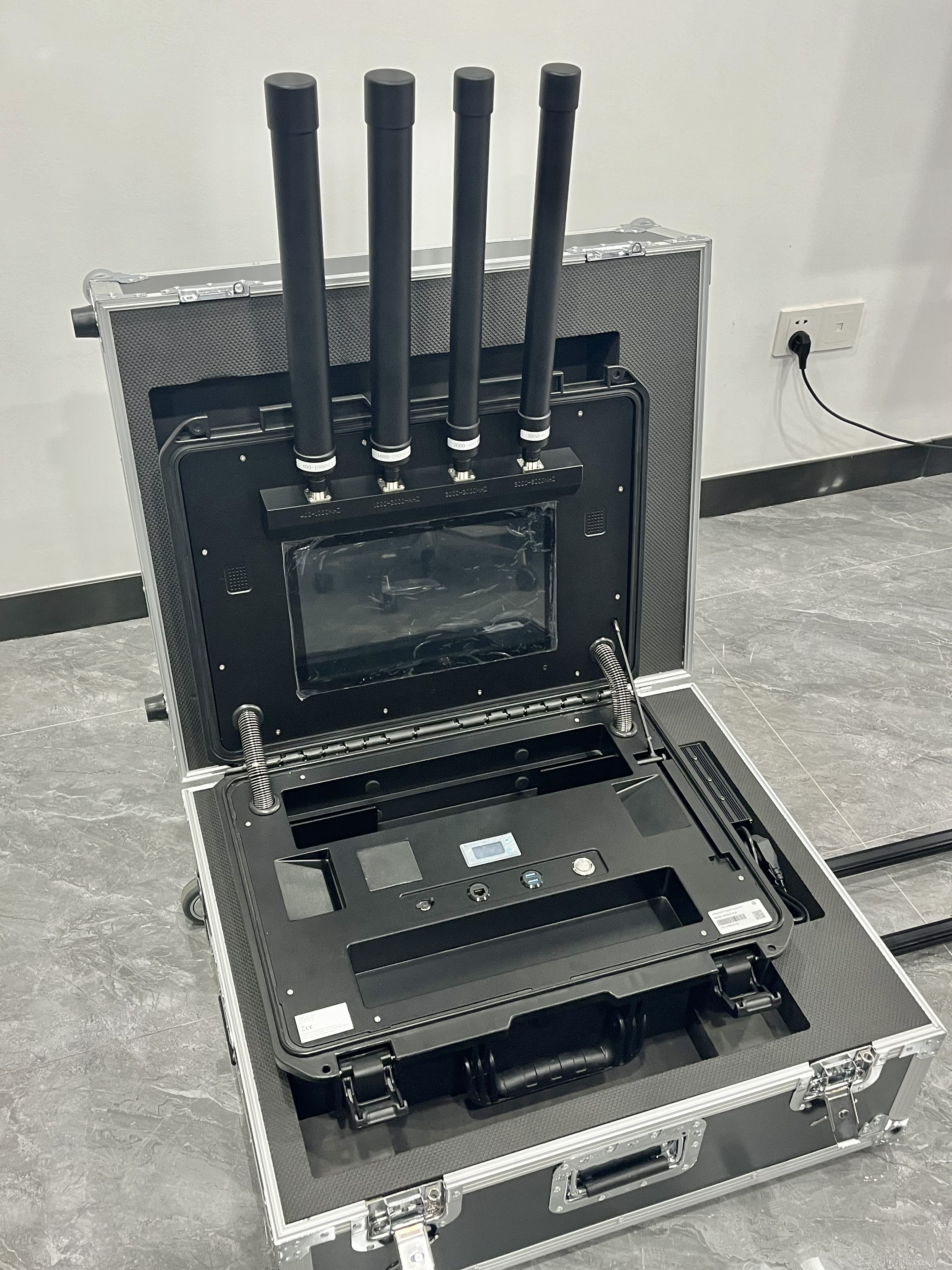

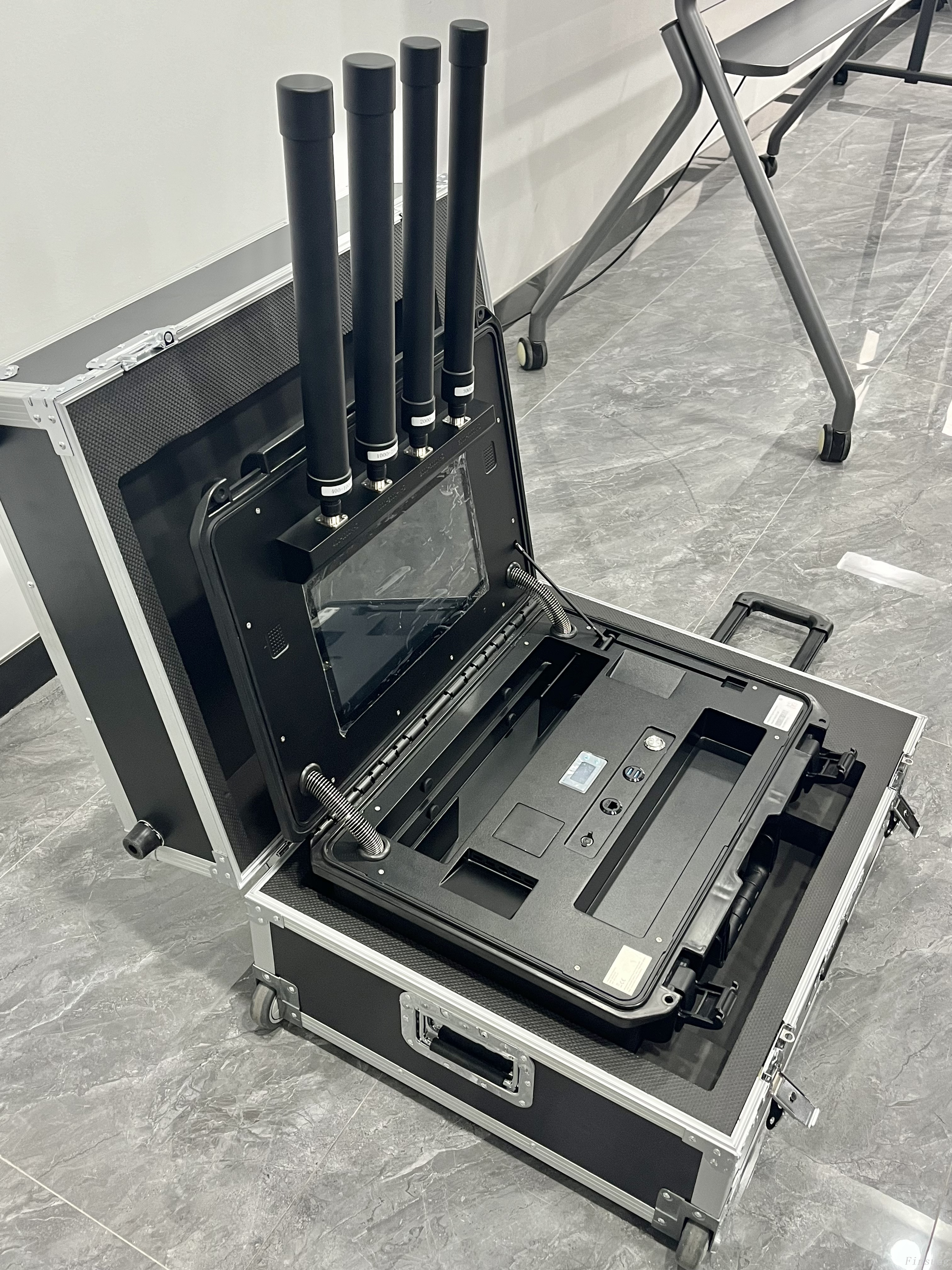

Portable RF Detector

Radio Frequency Detection System for UAV Identification

This advanced radio signal detection solution operates within the 300MHz-6GHz spectrum range, providing 5km radius coverage for unmanned aerial vehicle (UAV) identification. The system enables rapid autonomous detection, localization, and alert notification through multimodal alarms upon activation.

Core Functionalities:

1. Non-emissive Operation: Implements passive electromagnetic signal reception without environmental interference

2. Signal Analysis Capabilities: Features spectrum analysis, packet decoding, and target classification

3. Precision Identification: Identifies manufacturer serial codes, model specifications, positional data (coordinates, altitude, velocity), flight paths, and controller locations for commercial UAVs

4. List Management: Configurable whitelist/blacklist system with single-command activation for alarm suppression

5. Model Compatibility: Supports market-leading UAV brands, WiFi-enabled drones, and custom-built units

6. Spatial Localization: Provides geolocation tracking for both aircraft and remote controllers

7. Full-Spectrum Coverage: Operates across entire 300MHz-6GHz frequency range

8. Network Integration: Enables platform connectivity for centralized command systems

9. Multi-Target Tracking: Displays color-coded trajectory visualization for concurrent UAV monitoring

10. Portable Deployment: Compact design suitable for vehicular transport and rapid field installation

Technical Specifications:

• Frequency Range: 300MHz-6000MHz

• Dual Detection Modes: Omnidirectional (360° azimuth) & directional

• Positioning Accuracy: ≤3° RMS

• Response Time: <1 second detection-to-identification

• Display: 13.3" HD interface panel

• Power Options: Integrated battery (5h runtime) / 220V AC

• Environmental Rating: IP65 certified

• Operational Parameters:

• Power Consumption: 80W (peak)

• Weight: 15kg

• Temperature Range: -20°C to +55°C

Deployment Protocol:

The system enables mobile vehicle-based operations with immediate activation at deployment sites. Upon target confirmation through acoustic/optical alerts, operators can initiate countermeasures using portable neutralization devices. Real-time system status updates and detection data are transmitted to centralized command platforms via secure network links.
